Nylon Tube

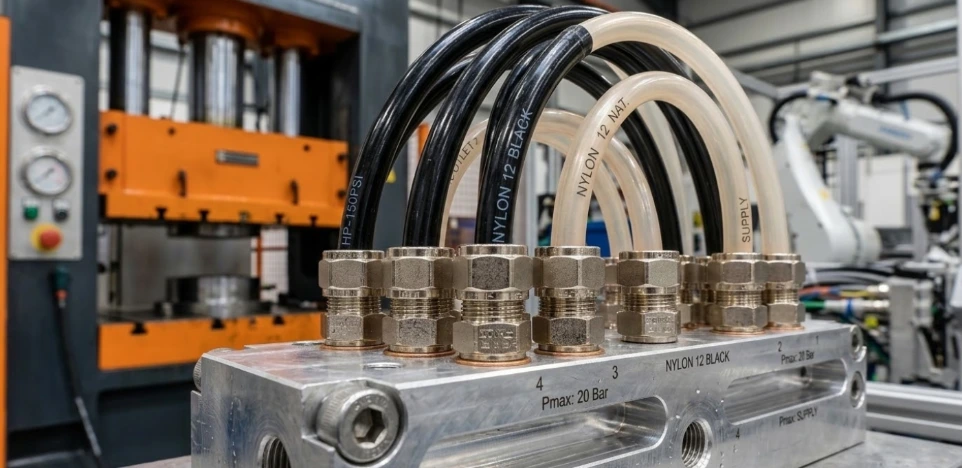

Flexible, lightweight and durable over a wide temperature range, our nylon tube is the go-to tube choice for a number of purposes such as pneumatic control systems, fuel lines, and food and beverage production lines.

Get a Bespoke Quote
or call us to discuss your requirements on:
01530 416177

Details
Lengths and Colour
Use
Technical Details
Specification

Details

Regarded highly for its exceptional stability, mechanical strengths and resistance to chemical corrosion, nylon is considered to be one of the most versatile engineering materials.

This is why we use nylon 12 polymer to manufacture this tube. Heat and light stabilised to precise tolerances, it creates a flexible, lightweight and durable tube that possesses improved flow capabilities.

For use with higher temperatures and pressures, we can also manufacture semi-rigid nylon tube in all of the same sizes as our standard nylon tube.

  • Flexible over a wide temperature range.
  • Lightweight and durable.
  • Chemical, moisture and abrasion resistant.
  • REACH, RoHS and BSI ISO 9001 compliant.
  • Improved flow capabilities.
  • Semi-rigid option available.

Colour / Length

Lengths & Colour

Our nylon tube is available in a range of sizes. The standard coil length is 30 metres, although alternative coil lengths are available. This tube is available in natural, black, red, blue, green, yellow, orange, brown, grey and pink. Should you have any queries, get in touch with our sales team - they are always happy to see how we can help client requirements.

Use

Use

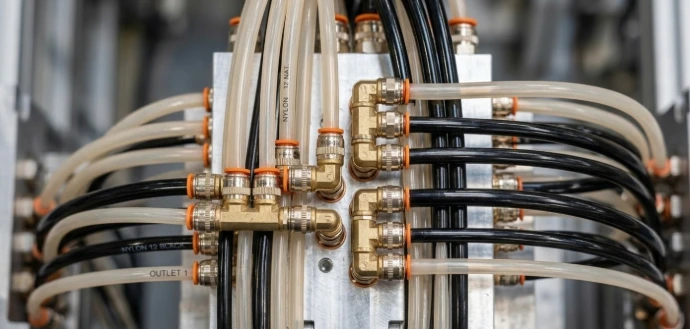

Particularly popular within the pneumatics industry, our nylon tube is suitable for many additional purposes, such as pneumatic control systems, fuel lines, lubrication lines, food and beverage uses, brewing and production lines.

Technical Details

Technical Details

The working pressures of this tube are based on the short-term burst pressure calculated at 20°C using a 4:1 safety factor. Working and burst pressures of semi-rigid nylon is approximately 60% higher than for flexible nylon.

Maximum recommended continuous working temperature is 70°C, with occasional limited periods of up to 120°C. For elevated temperatures up to 110°C with intermittent use of temperatures up to 140°C, semi-rigid nylon should be used.

Any increases in temperature above 20°C will affect the short-term burst pressure quoted for this product. The minimum operating temperature is -40°C.

Specification

Imperial

Part No. OD ID Working Pressure Burst Pressure Min. Bend Radius
ANI/062 1/8" .062" 725 P.S.I 2900 P.S.I 5/16"
ANI/075 1/8" .075" 710 P.S.I 2840 P.S.I 5/16"
ANI/095 1/8" .095" 680 P.S.I 2720 P.S.I 3/8"
ANI/096 5/32" .096" 520 P.S.I 2080 P.S.I 5/16"
ANI/117 3/16" .117" 455 P.S.I 1820 P.S.I 3/18"
ANI/137 3/16" .137" 305 P.S.I 1220 P.S.I 1/2"
ANI/150 1/4" .150" 395 P.S.I 1580 P.S.I 3/18"
ANI/170 1/4" .170" 375 P.S.I 1500 P.S.I 1/2"
ANI/190 1/4" .190" 250 P.S.I 1000 P.S.I 1"
ANI/212 5/16" .212" 375 P.S.I 1500 P.S.I 7/8"
ANI/242 5/16" .242" 250 P.S.I 1000 P.S.I 1 1/4"
ANI/250 3/8" .250" 400 P.S.I 1600 P.S.I 1"
ANI/265 3/8" .265" 380 P.S.I 1520 P.S.I 1 1/4"
ANI/295 3/8" .265" 355 P.S.I 1420 P.S.I 1 1/2"
ANI/375 1/2" .375" 285 P.S.I 1140 P.S.I 1 1/2"
ANI/500 5/8" .500" 220 P.S.I 880 P.S.I 2 1/2"
ANI/594 3/4" .594" 225 P.S.I 900 P.S.I 4"
ANI/813 1" .813" 205 P.S.I 820 P.S.I 7/8"

Metric

Part No. OD ID Working Pressure Burst Pressure Min. Bend Radius
ANM 4/25 4mm 2.5mm 415 P.S.I 1600 P.S.I 8mm
ANM 5/3 5mm 3mm 450 P.S.I 1800 P.S.I 10mm
ANM 5/33 5mm 3.3mm 425 P.S.I 1700 P.S.I 12mm
ANM 6/4 6mm 4mm 358 P.S.I 1432 P.S.I 13mm
ANM 8/55 8mm 5.5mm 332 P.S.I 1328 P.S.I 22mm
ANM 8/6 8mm 6mm 255 P.S.I 1020 P.S.I 32mm
ANM 10/7 10mm 7mm 317 P.S.I 1268 P.S.I 26mm
ANM 10/75 10mm 7.5mm 261 P.S.I 1044 P.S.I 43mm
ANM 10/8 10mm 8mm 200 P.S.I 800 P.S.I 50mm
ANM 12/85 12mm 8.5mm 277 P.S.I 1108 P.S.I 36mm
ANM 12/9 12mm 9mm 257 P.S.I 1028 P.S.I 45mm
ANM 12/95 12mm 9.5mm 234 P.S.I 936 P.S.I 53mm
ANM 12/10 12mm 10mm 164 P.S.I 656 P.S.I 60mm
ANM 16/12 16mm 12mm 193 P.S.I 772 P.S.I 85mm
ANM 22/17 22mm 17mm 230 P.S.I 920 P.S.I 140mm
ANM 25/20 25mm 20mm 200 P.S.I 800 P.S.I 180mm

ID = Inside diameter
OD = Outer diameter
