Last June, a lead engineer in Birmingham discovered that a 50 mm nominal bore specification resulted in a pipe with a 60.3 mm outer diameter; this discrepancy caused a £4,200 loss in scrapped fittings and assembly delays.
You likely understand that the complexity of PVC pipe sizes often stems from the historical overlap between imperial and metric standards in UK manufacturing.
It’s good to see that you’re seeking to avoid these costly errors by mastering technical dimensions.
You’ll be glad to hear that this guide provides the exact technical data for nominal bore and wall thickness to ensure your industrial systems are specified with absolute precision.
In our view, having a reliable reference for OD and wall thickness is essential for your bespoke extrusion profiles.
We will examine the specific correlations between outside diameters and internal flow capacities across various UK industrial classifications.
To discuss your specific technical requirements with our engineering team, please contact us today.
Key Takeaways
-
You will learn how to navigate the distinction between nominal naming conventions and actual millimetre measurements. This ensures your specifications remain accurate to within 0.02mm for seamless system integration.
-
You will be glad to hear that we explain how schedule numbers dictate internal diameters while keeping the outside PVC pipe sizes constant. This technical clarity helps you maintain consistent pressure ratings across your entire industrial installation.
-
It is good to see how using precision tools such as vernier callipers allows you to verify dimensions with absolute certainty. You will master the step-by-step process for measuring outside diameters to ensure proper fit.
-
You are in luck because we detail how bespoke extrusion allows for non-standard wall thicknesses tailored to your specific engineering needs. This approach moves beyond the limitations of off-the-shelf components to provide you with profiles manufactured to your exact tolerances.
Table of Contents

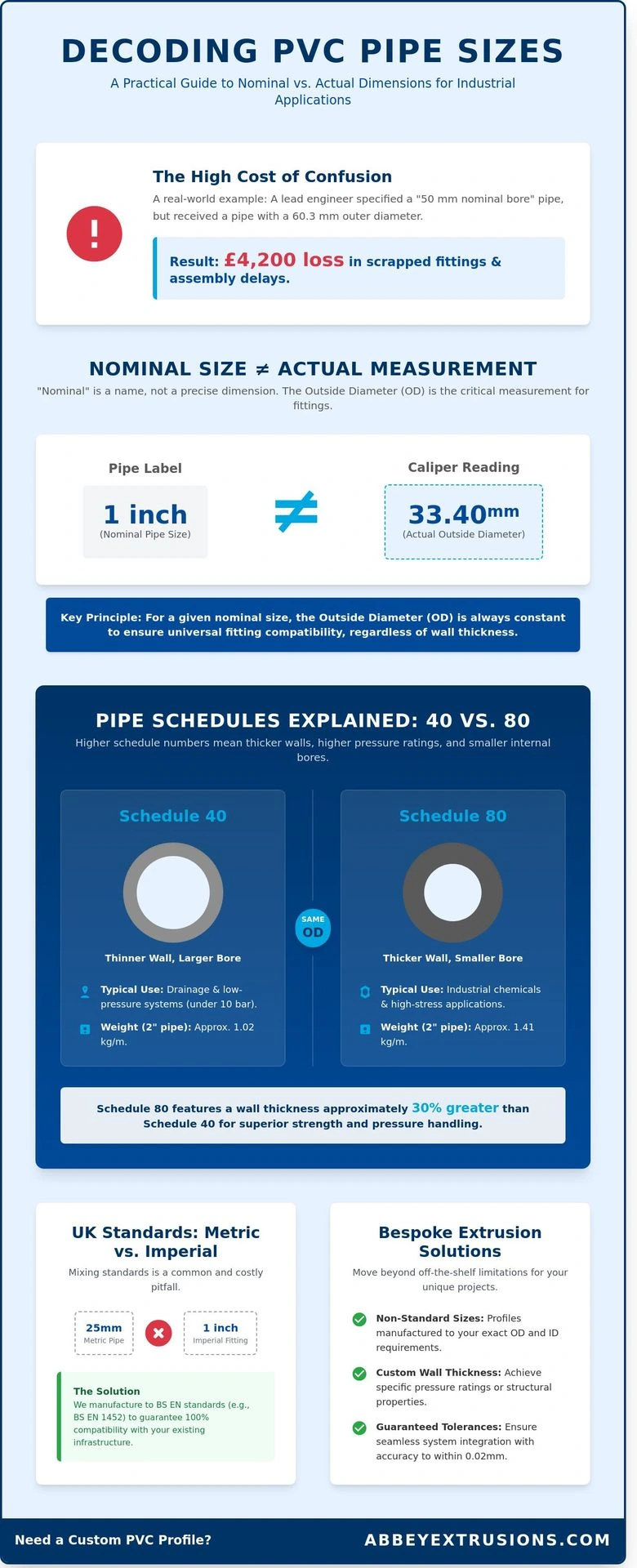

Understanding Nominal Pipe Size and the Nominal Confusion
You might find it confusing when the label on your industrial component doesn't match the reading on your digital calliper.
This occurs because the term "nominal" refers to a naming convention rather than a direct physical measurement in millimetres.
Historically, manufacturers increased wall thickness to handle higher pressures while keeping the external dimensions fixed to ensure compatibility. This design choice ensures that your fittings always fit the pipe, regardless of the internal bore size or the specific PVC pipe sizes you select.
It's helpful to understand Nominal Pipe Size as a standard that simplifies industrial design.
You'll be glad to hear that this consistency allows for predictable assembly and maintenance schedules in your facility.
The Distinction Between NPS and Actual Diameter
For pipes with a designated size under 300mm, the name is significantly different from the actual outer dimension. For instance, a 1-inch PVC pipe actually measures 33.40mm in Outside Diameter.
The Outside Diameter remains constant across different wall thicknesses for a given size, ensuring a universal fit.
As a result, a Schedule 40 pipe and a Schedule 80 pipe of the same nominal size will use the same connectors despite having different internal capacities.
In our view, checking these 33.40mm specifications prevents costly ordering errors. This precision gets our thumbs up because it ensures leak-free industrial connections that can withstand pressures up to 15 bar.
Metric and Imperial Standards in the UK
The UK market is unique because it utilises both metric and imperial standards for industrial PVC pipe sizes. You'll often see British Standard Pipe (BSP) threads alongside metric compression fittings in a single factory setting.
Mixing these standards is a common pitfall that leads to system failures and wasted materials. For example, a 25mm metric pipe will not fit a 1-inch imperial fitting because the 1-inch pipe's 33.40mm OD is exactly 8.4mm larger.
We ensure our bespoke profiles meet relevant BS EN standards, such as BS EN 1452, to guarantee 100% compatibility with your existing infrastructure. It’s good to see that these strict regulations provide a clear framework for UK manufacturing reliability.
PVC Pipe Schedules and Pressure Ratings Explained
You’ll be glad to hear that understanding the relationship between pipe wall thickness and diameter is quite straightforward once we define the term Schedule. In the context of PVC pipe sizes, the Schedule number identifies the thickness of the pipe wall while the Outside Diameter (OD) remains constant across all ratings.
It’s good to see how this standardisation allows you to use the same fittings for different schedules.
For instance, a 50mm Schedule 40 pipe and a 50mm Schedule 80 pipe both have an identical OD of 60.3mm, ensuring compatibility with your existing tooling.
As a result, increasing the schedule number reduces the Internal Diameter (ID) to accommodate a thicker wall. You will find that this extra material increases the weight per metre.
For a 2-inch pipe, Schedule 40 weighs roughly 1.02kg per metre, while Schedule 80 increases to 1.41kg per metre.
This weight variance is a vital figure for your logistics planning when calculating load-bearing requirements for 6 metre lengths.
In our view, referring to the British Standard for Industrial PVC Pipe provides the necessary technical foundation for these dimensions.
It gets our thumbs up for its detailed material specifications.
Schedule 40 and Schedule 80 Technical Comparisons
You are in luck if you require structural rigidity for your equipment.
Schedule 80 pipe features a wall thickness approximately 30 per cent greater than Schedule 40.
This provides the durability needed for high-stress environments.
Schedule 40 is typically utilised for drainage and low-pressure systems where pressures do not exceed 10 bar.
For industrial chemicals or bespoke profiles, Schedule 80 is the preferred choice. It withstands more aggressive mechanical handling than the thinner alternatives.
Pressure Ratings and Class Systems for Industry
You might also encounter PN ratings, which stand for Pressure Nominal in UK and European standards. A PN16 rating indicates a safe working pressure of 16 bar for various PVC pipe sizes at a base temperature of 20 degrees Celsius.
This system is very reliable for standardising components across different manufacturers.
It’s important to calculate your safe working pressure correctly. For every degree above 20°C, you must apply a derating factor.
This is because the material strength of PVC decreases as it warms.
For example, at 45 degrees Celsius, the pressure capacity of your pipe may drop to 50% of its original rating.
This means a PN16 pipe would effectively operate as a PN8 system in those specific conditions. It is a critical safety consideration for your industrial processes.
You should also closely monitor temperature fluctuations.
PVC becomes more brittle at temperatures approaching 0 degrees Celsius.
We recommend consulting our technical team if your project involves these extreme thermal ranges.
To speak with our experts about your sizing requirements.
How to Measure PVC Pipe Sizes Accurately
Measuring PVC pipe sizes correctly ensures your fittings seal perfectly at pressures reaching 15 bar. You'll be glad to hear that using a digital vernier calliper allows you to achieve a measurement accuracy of 0.02mm.
This level of precision is essential for industrial installations where a mismatch of even 0.5mm can cause joint failure.
In our view, you should strictly avoid using flexible tape measures for these tasks. These tools often lead to errors of 3.0mm or more because they cannot conform perfectly to the pipe's circular profile.
As a result, relying on a tape measure might lead you to order the wrong bespoke profiles for your project.
To measure the Outside Diameter (OD), you must place the calliper jaws firmly across the widest section of the pipe end.
It's good to see that this specific dimension determines the compatibility of your fittings and couplings.
You should also measure the wall thickness by placing the calliper on the edge of the pipe wall.
For instance, a wall thickness of 3.38mm on a 1-inch pipe confirms it's a Schedule 40 specification.
The Three-Point Measurement Method for Precision
You should measure the OD at three distinct points around the circumference of the pipe. This method allows you to account for potential ovality that may occur during extrusion or cooling.
By adding these three measurements and dividing by three, you calculate a reliable average diameter for your technical specifications.
Identifying out-of-round tubing is a vital part of your quality control process. If the difference between your measurements exceeds 0.5% of the total diameter, it may indicate poor manufacturing quality in your supply chain.
It's a simple check that ensures your system remains structurally sound under a vacuum of 700mmHg.
Identifying Internal Diameter for Flow Requirements
You'll find that flow rate calculations must always be based on the actual Internal Diameter (ID) rather than the Nominal Pipe Size (NPS).
NPS is merely a naming convention and doesn't represent the physical bore size of the tube. It gets our thumbs up when engineers use precise ID figures to prevent turbulence in fluid systems.
You can use a reference chart to identify the ID after recording the OD and wall thickness measurements. This step is particularly important in food-grade or brewery hose applications where hygiene is a priority.
For instance, a consistent 25.4mm internal bore prevents the buildup of bacteria in stagnant pockets. It's a detail that ensures your production line meets the highest safety standards.
Speak with our experts about your sizing requirements.
PVC Material Variants and Industrial Applications
Rigid PVC-U (Unplasticised) serves as the backbone for permanent UK installations due to its high tensile strength of approximately 52 MPa. You will find that this material maintains its structural integrity without the addition of plasticisers, which is excellent news for your high-pressure fluid systems.
It provides a stable, long-term foundation for your industrial infrastructure.
In contrast, PVC-P (Plasticised) incorporates specific additives to achieve a Shore A hardness typically ranging from 60 to 90.
This flexibility allows the tubing to bend around obstacles with a minimum bend radius, often calculated as five times the outside diameter.
As a result, you can install these lines in cramped industrial cabinets without fearing a kink in the flow.
Material choice directly dictates the available PVC pipe sizes and the precision of the manufacturing process.
For instance, our rigid PVC-U extrusions often adhere to tolerances as tight as +/- 0.1mm on smaller diameters.
You are in luck if your project requires high-precision fittings, as the lack of flexibility in PVC-U ensures the outside diameter remains constant under vacuum.
In the UK chemical sector, you will be glad to hear that PVC-U offers resistance to a wide range of acids and alkalis at temperatures up to 60 degrees Celsius.
We often add UV stabilisers to bespoke industrial extrusions to prevent material degradation when exposed to 1,000 hours of direct sunlight.
It is good to see that colour additives can also be matched to specific RAL codes for your brand identity.
Our manufacturing process allows for the creation of specialised profiles that meet your exact environmental needs.
By adjusting the compound, we ensure your components withstand the rigours of 24-hour production cycles.
This tailored approach ensures you receive a product that performs exactly as your engineering team requires.
Rigid PVC U and Flexible PVC Tubing Comparisons
Rigid pipes and flexible hoses use different sizing conventions for PVC pipe sizes that you need to master for a perfect fit.
Rigid pipe is almost always measured by its Outside Diameter (OD) to ensure it fits into standard socket-end fittings.
This approach is really nice to see because it simplifies bracket selection and supports across your facility.
Flexible tubing is measured by its Internal Diameter (ID) because it must stretch over barbed connectors for a leak-proof seal.
This distinction is vital when you are designing pneumatic lines or chemical transfer systems.
In our view, knowing these measurement standards prevents the common errors seen when matching hoses to existing industrial machinery.
Reinforced PVC Hoses Sizing for Strength
Internal braiding or wire reinforcement increases the wall thickness of your hose by 2-4mm compared to standard tubing.
This added bulk is necessary to support working pressures that can exceed 20 bar in heavy-duty environments.
You will find that these reinforced options are perfect for brewery lines where both hygiene and pressure resistance are required.
It gets our thumbs up for diesel fuel transfer, where a burst could be catastrophic and costly. Ensuring compatibility with barbed fittings and industrial clamps is essential to maintain a secure connection at these larger dimensions.
[Speak with our experts about your sizing requirements
](https://www.abbeyextrusions.com/contactus)
Bespoke Extrusion for Non-Standard Sizing Requirements
Standard off-the-shelf PVC pipe sizes often fail to meet the exact requirements of specialised engineering projects.
You'll be glad to hear that Abbey Extrusions offers a solution through custom extrusion that bypasses the limitations of fixed industrial standards.
By opting for a bespoke approach, you can specify non-standard diameters that fall outside the typical 6mm to 250mm range found in most hardware catalogues.
This flexibility is vital when your machinery requires a unique wall thickness, such as a 4.5mm wall for specific pressure resistance, to handle unique chemical flow rates.
Working with a UK manufacturer like us ensures that your tailored plastic solutions are produced under ISO 9001 quality standards.
It's good to see that our local production reduces your shipping lead times to as little as 14 days compared to the 12-week wait often associated with overseas alternatives.
To speak with our experts about your sizing requirements
Designing Custom Profiles and Tooling for Specific Sizes
We assist you in designing bespoke thermoplastic profiles by reviewing your initial CAD drawings for manufacturability.
In our view, this early collaboration prevents costly errors during the tooling phase, where we aim for tolerances as tight as +/- 0.1mm to ensure a perfect fit.
Precision tooling is the foundation of maintaining these tight tolerances across your entire production run.
You are in luck, as our in-house tool room can develop custom moulds tailored to your firm's unique dimensions and geometry.
The transition from a 5 metre prototype to full-scale industrial production is a seamless process at our facility.
As a result, you can verify the fit of your custom PVC pipe sizes before committing to a larger 500 metre or 1,000 metre production run, which is really nice to see.
Ordering Custom PVC with Key Specifications
When you are ready to place an order, having a clear technical checklist ensures the final product meets your operational needs.
You should define the following metrics precisely to help us provide an accurate quote
Outside Diameter (OD) and Inside Diameter (ID) measured in millimetres
Wall thickness requirements for specific pressure ratings, like 10 bar or 15 bar
Specific material grade, such as rigid PVC or flexible Shore A 70, for chemical resistance
UV stabilisation requirements if the pipe is exposed to more than 5 hours of sunlight daily
Volume and lead times are critical factors that we will discuss during your initial consultation.
For instance, a typical custom run might require a minimum order quantity of 250 metres to remain cost-effective for your business while maintaining a competitive price point of approximately £2.50 per metre for standard profiles.
It's really nice to see that our technical team is always available to provide advice on non-standard sizing requirements.
We encourage you to reach out for a technical consultation to ensure your project remains on schedule and within your budget.
Speak with our experts about your sizing requirements
Securing Precision for Your Industrial Manufacturing Requirements
Navigating the nuances of PVC pipe sizes ensures your industrial systems operate at peak hydraulic efficiency.
You'll be glad to hear that understanding the difference between Nominal Pipe Size and actual outside diameter prevents alignment errors in your assembly.
For instance, a standard schedule 80 pipe has a thicker wall than a schedule 40 pipe to handle higher pressure loads, which is a detail that gets our thumbs up for safety.
Explore our range of bespoke plastic extrusion profiles and custom PVC solutions
We've operated as a UK-based manufacturer since 1985, which gives you access to 39 years of specialist expertise in high-performance thermoplastics.
It's good to see how our bespoke profiles meet your exact millimetre tolerances for non-standard industrial requirements.
You're in luck because our expert technical support team is ready to assist with your specific rigid or flexible extrusion needs.
We look forward to helping you achieve the perfect fit for your next manufacturing project.
To ensure your project meets the exact technical specifications, please contact our technical team to discuss your requirements.
Frequently Asked Questions
How do I tell if my PVC pipe is Schedule 40 or 80
You can identify the specific schedule by examining the manufacturer specification print line, which repeats every 600mm along the pipe length.
You'll be glad to hear that Schedule 80 pipes are almost always dark grey and have a wall thickness of 5.54mm for a 2-inch size, whereas Schedule 40 pipes are typically white and have a thinner 3.91mm wall thickness.
In our view, checking the wall thickness at the cut end provides the most reliable confirmation.
This physical verification ensures you don't mistake a faded Schedule 40 pipe for a high-pressure variant.
Is PVC pipe measured by the inside or outside diameter
You'll be glad to hear that industrial PVC pipe sizes are categorised by a nominal system rather than by the inside or outside diameter. For instance, a 1-inch nominal pipe has a fixed outside diameter of 33.4mm regardless of its internal bore size.
This standardisation is vital because it allows you to use the same fittings for different wall thicknesses. It gets our thumbs up for making system design much more predictable for your engineering team.
What is the actual outside diameter of a 2-inch PVC pipe
The actual outside diameter of a 2-inch PVC pipe is precisely 60.325mm. This specific dimension remains constant across all schedules, which is really nice to see when you are sourcing components from different batches.
We maintain these tight tolerances in our manufacturing to ensure every joint remains leak-proof under pressure. You can rely on this 60.325mm figure when calculating the spacing for your industrial pipe brackets or support structures.
Can I use metric PVC fittings with imperial-sized PVC tubing
You cannot use metric fittings with imperial tubing because the sizing standards operate on entirely different millimetre scales.
For example, a 50mm metric pipe has a different circumference than a 2-inch imperial pipe; the 0.325mm variance prevents a proper solvent weld bond.
It’s good to see that most professionals avoid this mistake by sticking to a single measurement system for the entire installation. Mixing these standards will almost certainly lead to structural failure at 10 bar.
What does Nominal mean in PVC pipe sizing
Nominal refers to a standardised naming convention used for identifying different pvc pipe sizes across the global trade market.
In our view, it serves as a shorthand label rather than an exact physical dimension, so a 1/2-inch nominal pipe actually measures 21.34mm on its outer surface.
You are in luck because this system simplifies the ordering process for high-volume projects.
It lets you specify "1 inch" and receive components that fit together perfectly every time.
Does wall thickness affect the outside diameter of a PVC pipe
Wall thickness does not affect the outside diameter of a PVC pipe.
As a result, when you move from Schedule 40 to Schedule 80, the extra material grows inward to reduce the internal bore from 52.5mm down to 48.6mm on a standard 2-inch pipe.
This design allows you to use the same external fittings for both pipe types. We find this consistency helps you maintain a uniform appearance across your entire industrial facility.
How do I calculate the internal diameter if I know the OD and Schedule
You can calculate the internal diameter by subtracting exactly twice the wall thickness from the total outside diameter.
For instance, if your 1-inch Schedule 40 pipe has a 33.4mm OD and a 3.38mm wall, you subtract 6.76mm to find the 26.64mm internal bore.
You'll be glad to hear that this formula works for every schedule and size in our inventory. It allows you to accurately calculate flow rates for systems that move 200 litres of fluid per minute.
What is the largest standard size available for industrial PVC piping
The largest standard size for industrial PVC piping typically has a nominal diameter of 24 inches.
You are in luck if you require large volumes, as these pipes have an outside diameter of 609.6mm and can handle significant municipal water flows.
We also specialise in bespoke profiles for unique industrial applications that require non-standard dimensions.
To discuss your specific requirements for bespoke PVC profiles and industrial piping solutions, please contact our technical team today.
